26 11 000 Removing And Installing Propeller Shaft (Inserted) Completely

Special tools required:

• 00 9 120  , see Fig 4.
• 00 9 130  , see 00 9 130 MAGNET WITH 1/2" CONNECTION .
• 33 5 040  , see Fig 6.
• 33 5 070  , see 33 5 070 EXTENSION PIECE (2) .

Necessary preliminary tasks:

• Remove complete exhaust system  , see 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N54) .
• Remove assembly underside protection with brackets
• Remove heat shields

Important!  To avoid buzzing sound after refitting the propeller shaft:

The flexible disc connection (1) on the front at the propeller shaft must be marked in one plane with the flexible disc (2) and the three-bolt flange (3) before removal.

During installation the three-bolt flange (3) must be forced back together again with the flexible disc (2) in the same position.

Replace ZNS bolts and self-locking nuts.

Fig 1: Refitting Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

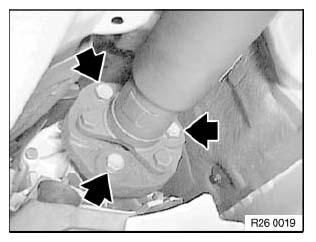

Release screws.

Installation:

• Replace ZNS bolts and self-locking nuts.
• Grip mounting bolts of flexible disc at nuts and tighten down by way of bolts.
  Fig 2: Locating Mounting Bolts Of Flexible Disc

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

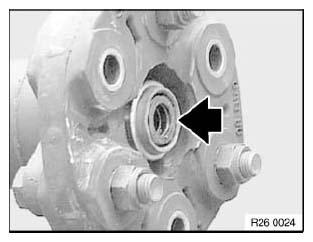

Check centering mount.

If necessary, replace damaged centering mount  , see 26 11 090 REMOVING AND INSTALLING/REPLACING FRONT CENTERING MOUNT FOR PROPELLER SHAFT .

Grease centering mount.

Fig 3: Locating Centering Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tighten down screws/bolts to specified torque.

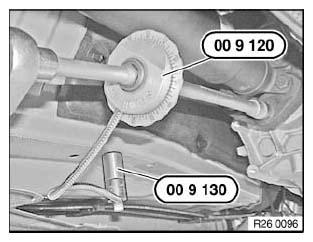

Secure special tool angle of rotation 00 9 120 with magnet 00 9 130 to underbody and continue bolting according to angle of rotation, see Fig 4.

Tightening torque, see 26 11 1AZ in PROPELLER SHAFT ASSEMBLY .

Fig 4: Securing Special Tool Angle Of Rotation 00 9 120 With Magnet 00 9 130

Courtesy of BMW OF NORTH AMERICA, INC.

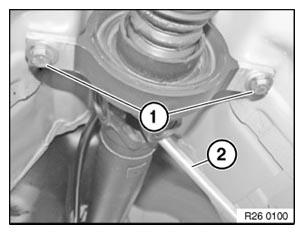

Slacken screws (1)

Tightening torque, see 26 11 6AZ in PROPELLER SHAFT ASSEMBLY .

Using a suitable tool (2), secure propeller shaft at center universal joint against turning.

Remove screws of center mount fully only after opening insert nut.

Fig 5: Securing Propeller Shaft At Centre Universal Joint Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

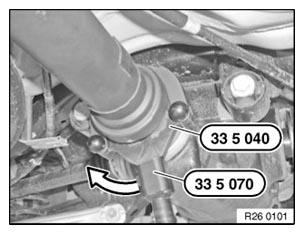

Release insert nut against direction of travel in clockwise direction  with special tools 33 5 040 and 33 5 070. See Fig 6.

Tightening torque, see 26 11 1AZ in PROPELLER SHAFT ASSEMBLY .

Fig 6: Releasing Insert Nut Using Special Tools 33 5 040 And 33 5 070

Courtesy of BMW OF NORTH AMERICA, INC.

Remove retaining clip (1) and seal (2).

Installation:

Retaining clip and seal must be replaced.

Fig 7: Identifying Retaining Clip And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

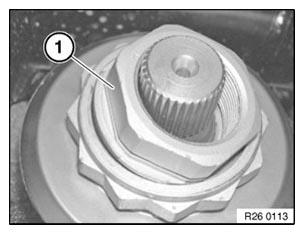

Remove insert nut (1).

Installation:

Insert nut must be replaced.

Fig 8: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

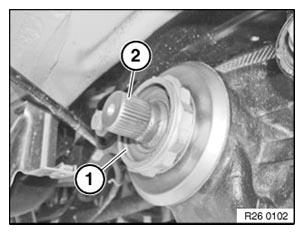

Before installing propeller shaft:

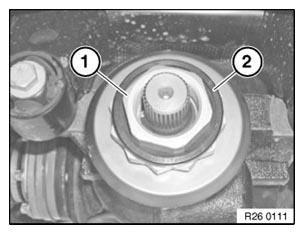

Clean insert collar (1) on flange nut and spline teeth on bevel pinion (2).

Fill insert collar (1) with grease.

Fig 9: Identifying Collar And Teeth Of Bevel Pinion

Courtesy of BMW OF NORTH AMERICA, INC.

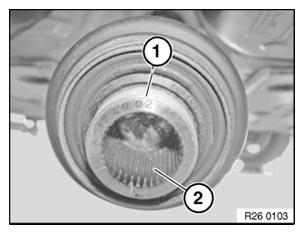

Clean thread (1) of joint hub to remove adhesive residues.

Clean hub teeth (2), then coat with grease.

Fig 10: Identifying Thread And Hub Teeth

Courtesy of BMW OF NORTH AMERICA, INC.

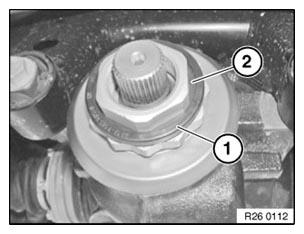

Place insert nut (1) with seal in insert collar of flange nut.

Install retaining clip (2).

Fig 11: Identifying Nut And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

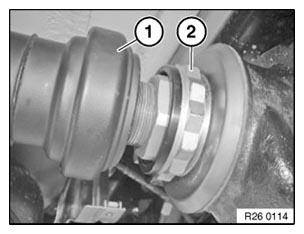

Slide propeller shaft (1) as far as it will go onto insert nut and secure.

Secure propeller shaft at center universal joint against turning with a tire iron.

Insert nut must be screwed into place within 5 minutes  .

Tightening torque, see 26 11 1AZ in PROPELLER SHAFT ASSEMBLY .

Fig 12: Identifying Propeller Shaft And Bihexagonal Flange Nut

Courtesy of BMW OF NORTH AMERICA, INC.
