34 41 071 Replacing handle for handbrake lever

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Pull off handle for handbrake lever (1) in direction of arrow.

Installation:

Handbrake lever grip (1) must snap audibly into place.

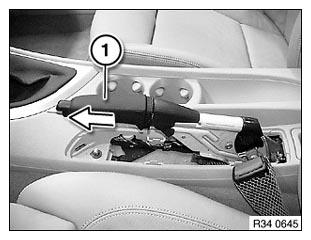

Fig 1: Pulling Off Handbrake Lever Handle
G06176108Courtesy of BMW OF NORTH AMERICA, INC.
