33 21 002 Removing and installing/replacing right output shaft

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear wheel . See 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

IMPORTANT: Expand turning lock sufficiently to avoid damaging thread when releasing collar nut.

Release collar nut (1), activate handbrake for this purpose.

Installation:

Replace collar nut, oil collar nut/wheel bearing contact surface only and tighten down.

No oil permitted on thread of shaft journal or collar nut.

Tightening torque 33 41 1AZ, see 33 41 WHEEL BEARINGS

Secure collar nut by positive peening on flat areas of output shaft.

Remove tension strut if necessary. See 51 71 371 REMOVING AND INSTALLING/REPLACING TENSION STRUT ON LEFT OR RIGHT SPRING STRUT DOME (CONVERTIBLE) or 51 71 371 REMOVING AND INSTALLING/REPLACING TENSION STRUT ON LEFT OR RIGHT SPRING STRUT DOME (COUPE) .

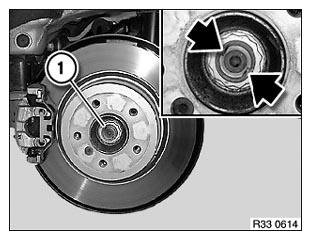

Fig 1: Identifying Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts and remove with washers (1).

Press output shaft off drive flange using a suitable tool; if necessary, raise wheel carrier with workshop jack approx. 20 mm.

Installation:

Before installing output shaft, make sure that drive flange is fully engaged in rear differential.

Replace bolts and washers (1).

Tightening torque 33 21 1AZ, see 33 21 OUTPUT SHAFT

Press output shaft out of drive flange and remove towards center of vehicle.

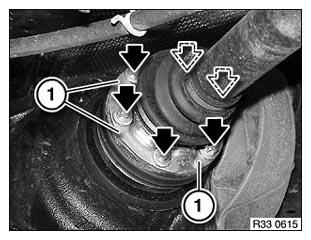

Fig 2: Identifying Bolts And Washers

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check that output shaft is correctly seated in rear differential.
