26 11 051 Replacing Flexible Disk For Front Propeller Shaft

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove propeller shaft from transmission and center bearing, see 26 11 000 REMOVING AND INSTALLING PROPELLER SHAFT (INSERTED) COMPLETELY .
NOTE: To protect universal joints, tie back propeller shaft in area of center mount.

Release screws and remove flexible disc (1) from propeller shaft.

IMPORTANT: Replace shiny ZNS bolts and self-locking nuts.

Tightening torque and angle of rotation, see 26 11 1AZ in PROPELLER SHAFT ASSEMBLY : .

Installation:

Arrows (3) on circumference of flexible disk must point to flange arms (2).
Grip mounting bolts of flexible disk at propeller shaft flange at nuts and tighten down at bolt heads.

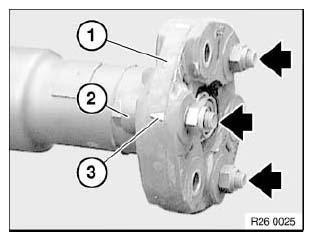

Fig 1: Identifying Screws On Flexible Disc
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check centering mount.

Replace damaged centering mount , see 26 11 090 REMOVING AND INSTALLING/REPLACING FRONT CENTERING MOUNT FOR PROPELLER SHAFT .

Grease centering mount.

Fig 2: Locating Centering Mount

Courtesy of BMW OF NORTH AMERICA, INC.
