26 11 020 Replacing Center Mount Gaiter

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

NOTE: The propeller shaft is balanced. The front and rear propeller shafts must be reassembled in the same position.
Detach gaiter (1) from groove (2).

Mark front propeller shaft (3) and rear propeller shaft (4) in one plane.

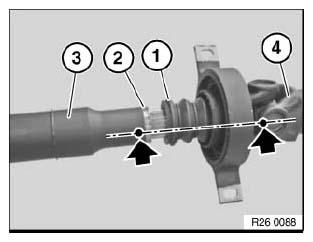

Fig 1: Positioning Front And Rear Propeller Shaft In One Plane
G04726210Courtesy of BMW OF NORTH AMERICA, INC.

Pull propeller shaft apart.

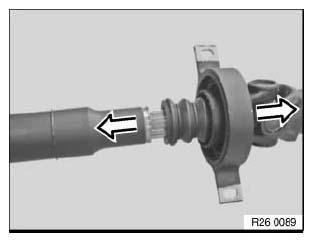

Fig 2: Pulling Propeller Shaft
G04726211Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, insert new clamping ring (1) into front propeller shaft (2).

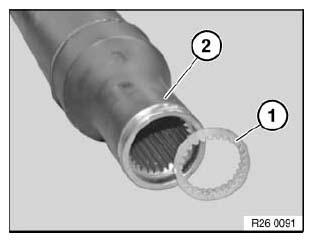

Fig 3: Identifying Clamping Ring On Front Propeller Shaft
G04726212Courtesy of BMW OF NORTH AMERICA, INC.

Release gaiter (1) with screwdriver from groove (2) and pull off over longitudinal splines.

Installation:

Apply an even coating of grease to longitudinal splines on shaft.

Observe markings and force front propeller shaft onto longitudinal splines (markings must be flush).

Push gaiter (1) during installation into groove (2) and make sure it is firmly seated.

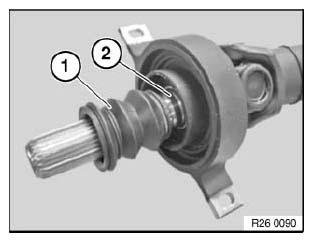

Fig 4: Identifying Gaiter And Groove
G04726213Courtesy of BMW OF NORTH AMERICA, INC.
