18 12 045 Removing And Installing/Replacing Center Muffler (N54)

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 210

WARNING: Scalding hazard!
Only perform these tasks after exhaust system has cooled down.

Necessary preliminary tasks:

Remove trailing link. See 51 71 482 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT TENSION STRUT (ON REAR AXLE) (E88) or 33 32 165 REMOVING AND INSTALLING OR REPLACING TENSION STRUT (E82) .

Unscrew nuts.

Installation note: Replace self-locking nuts. Replace gasket. Tightening torque 18 31 1AZ .

Fig 1: Locating Self-Locking Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

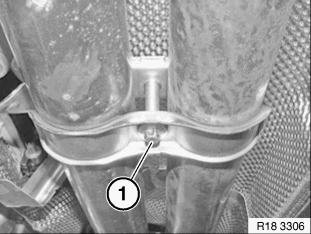

Release screw (1) and remove holder. Tightening torque 18 20 1AZ .

Fig 2: Releasing Screw (1) And Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws. Tightening torque 18 20 1AZ . Replace gasket. Lower and remove the centre silencer.

Fig 3: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check rubber mount and replace if damaged. Check exhaust system for leaks. Reassemble the vehicle.
