16 14 070 Removing And Installing/Replacing Vent Hose With Strainer For Carbon Canister
WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove cover for carbon canister . For Convertible models, see 51 71... REMOVING AND INSTALLING/REPLACING COVER FOR CARBON CANISTER . For Coupe models, see 51 71... REMOVING AND INSTALLING/REPLACING COVER FOR CARBON CANISTER .
- Remove rear right wheel arch cover . For Convertible models, see 51 71 041 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT WHEEL ARCH COVER . For Coupe models, see 51 71 041 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT WHEEL ARCH COVER .

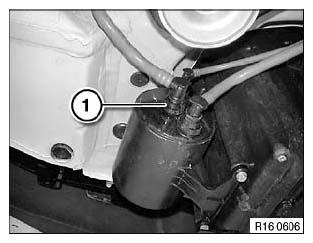

Release quick-release coupling (1) and detach vent hose.
Installation:
Quick-release coupling (1) must audibly snap into place.
Check locking of quick-release coupling by pulling, do not actuate release element in the process.

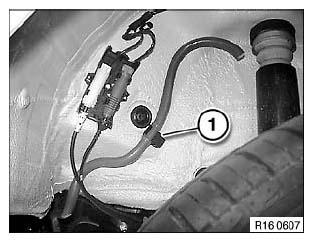

Carefully press vent hose out of clamps (1).
