Section 1789 (Body Equipment - Repair - E61)
>>
47 Floor/Luggage/Engine Compartment Trim Panel
>>
51 47 ... Overview of luggage compartment trim panels
51 47 ... Overview of luggage compartment trim panels
WARNING:
This page is about a different car, the 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

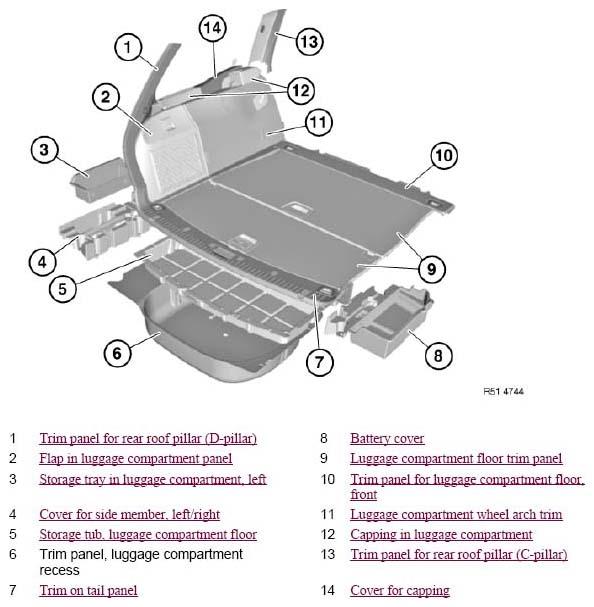

Fig 1: Identifying Luggage Compartment Trim Panels Components
Courtesy of BMW OF NORTH AMERICA, INC.
