Section 1789 (Body Equipment - Repair - E61)
>>
45 Instrument Cluster Trim Panel
>>
51 45 ... Overview of instrument panel
51 45 ... Overview of instrument panel
WARNING:
This page is about a different car, the 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

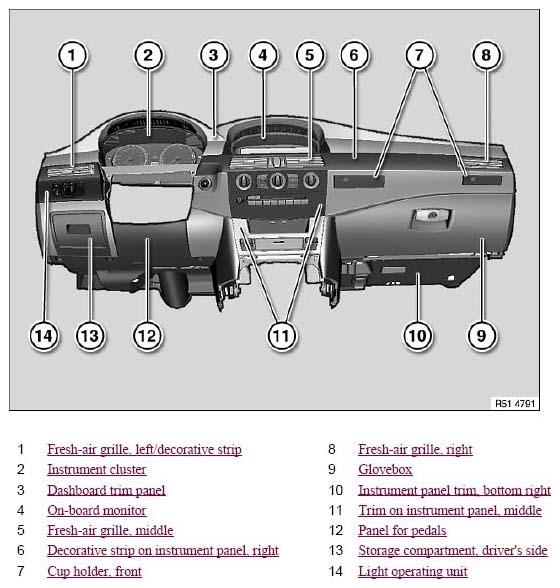

Fig 1: Overview Of Instrument Panel
Courtesy of BMW OF NORTH AMERICA, INC.
