Section 1789 (Body Equipment - Repair - E61)
>>
21 Front Door Locks, Handles, Fittings
>>
51 21 ... Overview of front door locks
51 21 ... Overview of front door locks
WARNING:
This page is about a different car, the 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

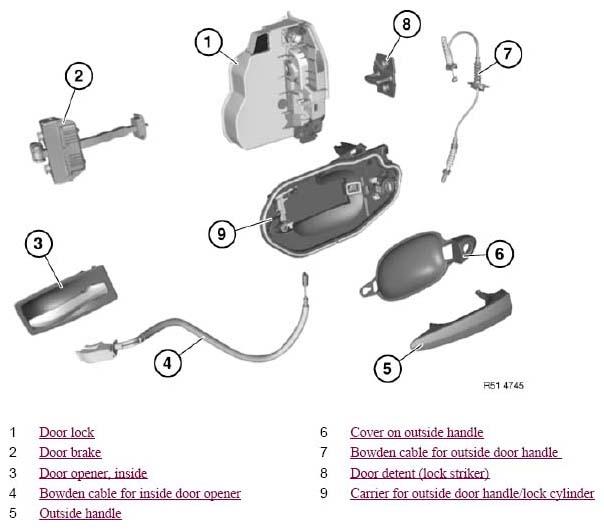

Fig 1: Overview Of Front Door Locks
Courtesy of BMW OF NORTH AMERICA, INC.
