Section 1789 (Body Equipment - Repair - E61)
>>
12 Rear Bumper
>>
51 12 ... Survey of rear bumper
51 12 ... Survey of rear bumper
WARNING:
This page is about a different car, the 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

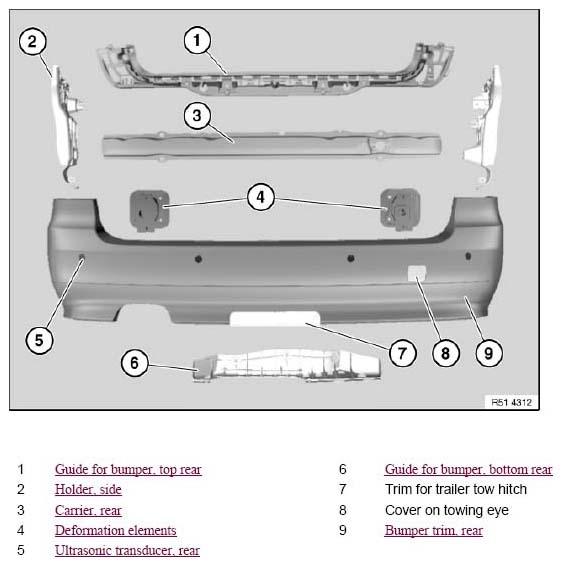

Fig 1: Identifying Rear Bumper Components
Courtesy of BMW OF NORTH AMERICA, INC.
