22 11 001 Replacing Right Engine Mount (N62TU)

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect Battery . See 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Secure engine in installation posit
Remove reinforcement plate . See 31 10 010 REMOVING AND INSTALLING/REPLACING REINFORCEMENT PLATE .
Drain off engine oil
Remove heat shields.
Remove Starter Motor . See 41 STARTER WITH MOUNTING .
Remove Engine Support Arm

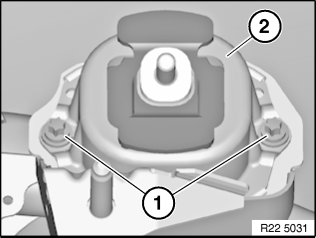

Release screws (1) and remove engine mount (2). Tightening torque 22 11 1AZ, see EXHAUST SYSTEM - TIGHTENING TORQUES .

Fig 1: Locating Engine Mount Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Holes (1) in engine mount must point to middle of vehicle.

Fig 2: Holes Must Point To Middle Of Vehicle

Courtesy of BMW OF NORTH AMERICA, INC.
