22 11 100 Replacing Right Engine Support Arm (N62TU)
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Disconnect battery . See 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
- Secure engine in installation position
- Remove reinforcement plate . See 31 10 010 REMOVING AND INSTALLING/REPLACING REINFORCEMENT PLATE .
- Drain off engine oil
- Remove heat shields
- Remove oil dipstick guide tube
- Remove starter motor. See 41 STARTER WITH MOUNTING .
- Remove right steering cover.

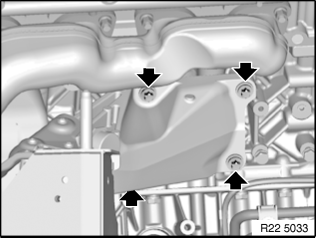

Release screws and engine support arm.
Tightening torque 22 11 3AZ, see EXHAUST SYSTEM - TIGHTENING TORQUES .
