51 34 211 Replacing Rubber Guide For Rear Left Or Right Door Window
WARNING: This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 317
Necessary preliminary tasks:
- Remove decorative strip on window frame of rear door. See 51 22 302 REMOVING AND INSTALLING/REPLACING CHROME STRIP FOR WINDOW CAVITY COVER STRIP, REAR LEFT OR RIGHT .

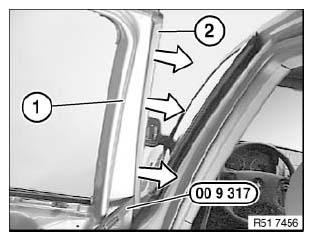

Lever out rubber guide (2) on door window frame (1) with special tool 00 9 317.
Pull rubber guide (1) out of window guide at front and rear.
Pull rubber guide (1) off door window frame and remove.
Installation:
Prior to installation, coat rubber guide (1) with soapy solution (washing-up liquid).
Ensure rubber guide (1) is correctly seated in rubber guide.
