72 12 060 Removing And Installing/Replacing Left Or Right Head Airbag

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with safety regulations for handling airbag modules and pyrotechnical belt tensioners. See 72 00 ... SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
Incorrect handling can activate airbag and cause injury.
A damaged head airbag must be replaced.
A damaged head airbag exhibits an impaired protective function and in extreme cases loses its protective function altogether.

Necessary preliminary tasks:

Disconnect battery negative lead . See12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove roofliner . See 51 44 013 REMOVING AND INSTALLING/REPLACING ROOFLINER (VERSION WITH PANORAMA SUNROOF) .
Follow instructions for unlocking and locking airbag plug connection. See 72 12 ... UNLOCKING/LOCKING AIRBAG PLUG CONNECTIONS .

Installation summary, retaining elements, head airbag:

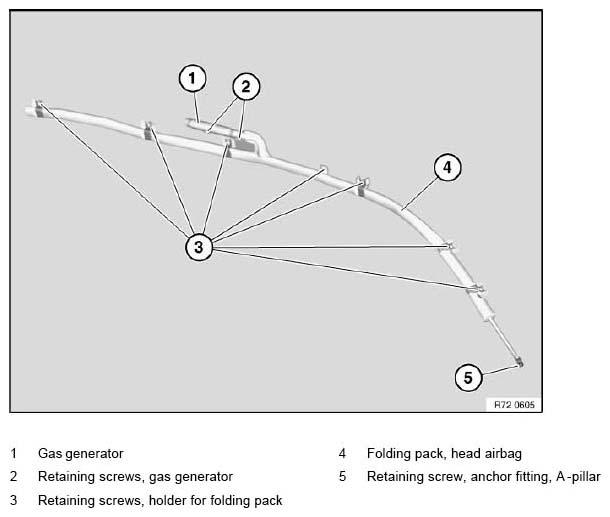

Fig 1: Identifying Gas Generator, Retaining Screws And Head Airbag

G04792880

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When removing head airbag, do not damage

Head airbag
Windscreen
Retaining clips
Trim panels

Release screw (1) on A-pillar.

Tightening torque. See PARTS AND ACCESSORIES - TIGHTENING TORQUES - X5 .

Release retaining screws (2).

Tightening torque. See PARTS AND ACCESSORIES - TIGHTENING TORQUES - X5 .

Remove deformation plate (3).

Fig 2: Identifying Deformation Plate

G04792881

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque. See PARTS AND ACCESSORIES - TIGHTENING TORQUES - X5 .

Installation:

Folding pack is under tab washer.

Fig 3: Identifying Screw

G04792882

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque. See PARTS AND ACCESSORIES - TIGHTENING TORQUES - X5 .

Fig 4: Identifying Screws

G04792883

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug (3) for gas generator (2). See 72 12 ... UNLOCKING/LOCKING AIRBAG PLUG CONNECTIONS .

Release screws (1).

Tightening torque. See PARTS AND ACCESSORIES - TIGHTENING TORQUES - X5 .

Remove gas generator (2) in direction of arrow.

Installation:

Gas generator is coded against incorrect installation.

Fig 5: Removing Gas Generator

G04792884
