64 22 ... Removing and installing windscreen air duct
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove instrument panel trim. 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .

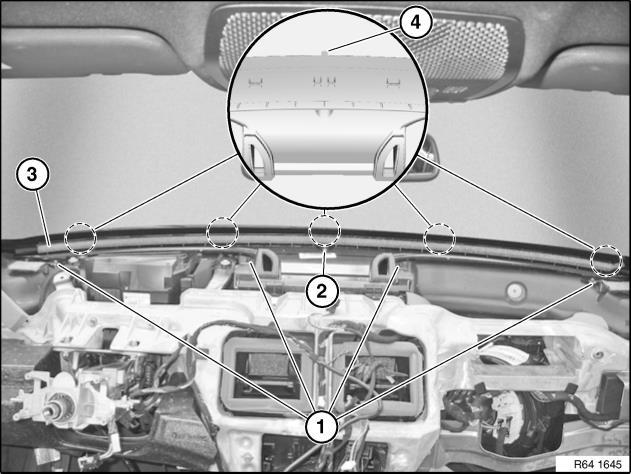

Release screws (1) and (2) and remove windscreen air duct (3). Installation: Make sure guides (4) are correctly seated in associated body openings.
