51 12 801 Replacing Bracket For Rear Bumper At Left or Right

WARNING: This page is about a different car, the 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove bumper trim See 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM

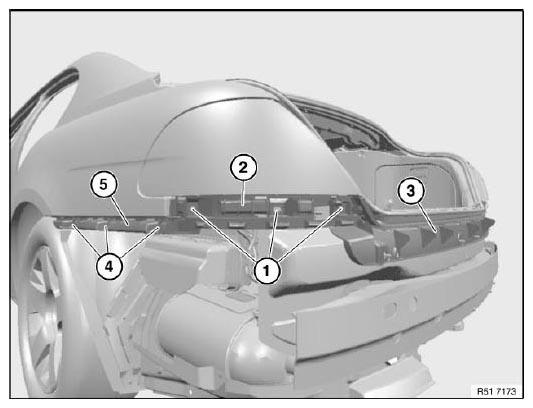

Fig 1: Identifying Rear Bumper Trim Components
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When removing guide (3), it is only necessary to remove bracket (2) on left/right.

Release nuts (1) on left/right.

Remove bracket (2) on left/right.

Release screws (4) on left/right.

Remove bracket (5) on left/right.
