11 21 ... Overview of Crankgear (N73)

WARNING: This page is about a different car, the 2008 BMW 760Li and 2007 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

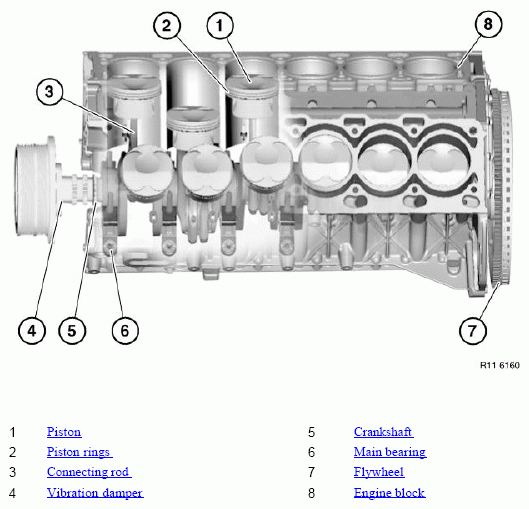

Fig 1: Identifying Piston, Piston Ring, Connecting Rod And Engine Block
G04773634Courtesy of BMW OF NORTH AMERICA, INC.
  1. Piston. See 11 25 530 Removing and Installing/Replacing All Pistons (N73)
  2. Piston rings. See 11 25 671 Replacing Piston Rings On All Pistons (N73)
  3. Connecting rod. See 11 25 530 Removing and Installing/Replacing All Pistons (N73)
  4. Vibration damper. See 11 23 010 Removing and Installing/Replacing Vibration Damper (N73)
  5. Crankshaft. See 11 21 500 Removing and Installing/Replacing Crankshaft (N73)
  6. Main bearing. See 11 21 531 Replacing Crankshaft Main Bearing Shells (N73)
  7. Flywheel. See 11 22 510 Removing and Installing/Replacing Flywheel (N73)
  8. Engine block. See 11 14 110 Removing and Installing Lower Timing Case Cover (N73) , 11 21 500 Removing and Installing/Replacing Crankshaft (N73) , 11 25 530 Removing and Installing/Replacing All Pistons (N73)
