51 24 ... Removing And Installing/Replacing Bowden Cable For Rear Lid Lock (Up To 03/2005)

Necessary preliminary tasks:

• Remove LOCK ELEMENT (LOCK CYLINDER) FOR REAR LID

Lever out securing plugs (1).

Lever out catches (2) and remove Bowden cable guide (3).

Fig 1: Removing Bowden Cable Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catch (1) and detach Bowden cables (2 and 3) from rear lid lock upper section (6).

Lever out expanding wedge (4) and detach guide (5).

Version with manual unlocking:

Installation:

Bowden cable (2) must be correctly positioned in guide (5).

Fig 2: Detaching Bowden Cables From Rear Lid Lock Upper Section

Courtesy of BMW OF NORTH AMERICA, INC.

Release lock (1) from Bowden cable (2) and remove clip (3).

Feed out Bowden cable (2) from rear lid.

Installation:

Lock (1) must be correctly fitted.

Fig 3: Identifying Bowden Cable And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Routing of Bowden cables for rear lid lock:

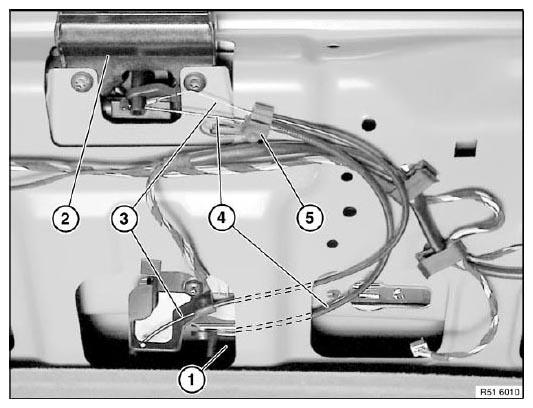

Fig 4: Identifying Rear Lid Lock, Bowden Cables And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

1. Fastener (lock cylinder)
2. Rear lid lock (upper section)
3. Bowden cable for manual rear lid unlocking
4. Bowden cable for rear lid lock
5. Holder on Bowden cable for rear lid lock
