24 40 010 Removing and Installing/Replacing Torque Converter (GA6HP26Z/6HP32Z)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 550
24 4 000

IMPORTANT:

After completion of work, check transmission fluid level . See 00 11 500 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6HP26Z/6HP32Z) .

Use only approved transmission oil . See AUTOMATIC TRANSMISSION - OPERATING FLUIDS .

Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove automatic transmission See 24 00 023 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (6HP26Z/6HP32Z)

Screw special tool 24 4 000 into torque converter. See 24 4 000 ASSEMBLY GRIP (2)

Remove torque converter.

NOTE: When torque converter is removed, transmission oil flows out.

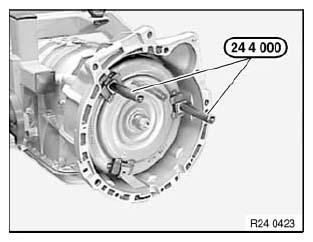

Fig 1: Identifying Special Tool (24 4 000)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When installing, do not damage shaft seal and bearing.

If the torque converter is not correctly installed, the driver of the pump impeller may be damaged when the transmission is flanged to the engine.

Remove torque converter and set down vertically.

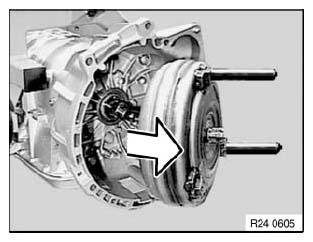

Fig 2: Removing Torque Converter

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Push torque converter through shaft seal onto transmission shaft as far as it will go.

Press torque converter by hand into converter housing and turn in the process. Converter hub opening must snap into place in driver of pump impeller. Torque converter must be felt to slip inwards.

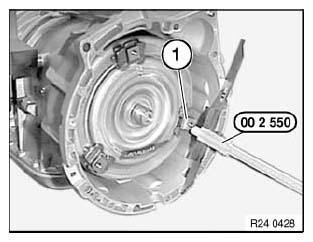

Determine distance between contact surface and surface (1) of tapped hole in torque converter with special tool 00 2 550 .

NOTE: Measured value must be greater than 25 mm.

Fig 3: Identifying Special Tool (00 2 550)

Courtesy of BMW OF NORTH AMERICA, INC.
