24 00 023 Removing and Installing Automatic Transmission (6HP26Z/6HP32Z)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 0 200
00 2 030
24 1 110
24 2 390
24 4 131
24 4 132
24 4 160
24 4 161
24 4 162
24 4 163
24 5 301
24 5 306

IMPORTANT:

After completion of work, check transmission oil level . See 00 11 500 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6HP26Z/6HP32Z) .

Use only the approved transmission fluid . See AUTOMATIC TRANSMISSION - OPERATING FLUIDS .

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Disconnect battery See 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY
Remove heater bulkhead (except M57). See 51 71 085 REMOVING AND INSTALLING CENTER OF ASSEMBLY COMPARTMENT BULKHEAD
Hold engine in transmission removal position.
- N73/M57: Position transmission lifter underneath.
- All others: with special tool 00 0 200
Remove exhaust system . See 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N62TU)
- M57: after catalytic converter
- All others: complete
Remove oxygen monitor sensors (except M57). See 11 78 540 REPLACING LEFT OXYGEN MONITOR SENSOR (N62/N62TU) and 11 78 543 REPLACING RIGHT OXYGEN MONITOR SENSOR (N62/N62TU)
Remove front engine under guard
Remove reinforcement plate See 31 10 010 REMOVING AND INSTALLING/REPLACING REINFORCEMENT PLATE

Installation:

Important notes on installation are described in this work step.

Release screws and remove transmission underbody protection (1).

Fig 1: Locating Transmission Underbody Protection Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove heat shields (1) and (2).

Fig 2: Identifying Heat Shields

Courtesy of BMW OF NORTH AMERICA, INC.

Only M57:

Release screws and remove underbody protection (1).

Fig 3: Locating Underbody Protection Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut.

Remove cable (1).

Installation:

Adjust cable

Release nut
Adjust cable by means of holder (2)
Spacing A = 1 mm

Fig 4: Locating Cable Nut
Courtesy of BMW OF NORTH AMERICA, INC.

M67 only:

Release screws.
Remove holder.

Fig 5: Locating Holder & Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Pull hydraulic lines (2) to transmission fluid cooler out of transmission housing.

N73 only: Release holder for oil lines on engine.

Installation:

Replace sealing rings.

Fig 6: Identifying Hydraulic Lines & Screw

Courtesy of BMW OF NORTH AMERICA, INC.

BMW ALPINA B7 only

Pay attention to thermostat (2) when removing hydraulic lines (1)

Fig 7: Identifying Hydraulic Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at central bolt in direction of rotation until a torque converter retaining screw is visible in opening.

Release retaining screws with special tool 24 1 110 . See 24 1 110 SOCKET WITH MAGNET

Crank engine further and release remaining 3 bolts.

Tightening torque 24 40 1AZ . See 24 40 TORQUE CONVERTER

Fig 8: Locating Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and disconnect (except M57).

Fig 9: Unlocking Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cable holder (1) from transmission housing (except M57).

Unclip cable from transmission.

Fig 10: Unclipping Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Perform following tasks:

Unlock and disconnect plug (1) by turning.
Insert special tool 24 2 390 in sealing sleeve. See 24 2 390 COVERING CAP

The operations are described in Replacing mechatronics (Important: Read and comply with important note!). See 24 34 ... NOTES ON MECHATRONICS (GA6HP26Z/GA6HP32Z/GA6HP19Z)

Fig 11: Disconnecting Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission:

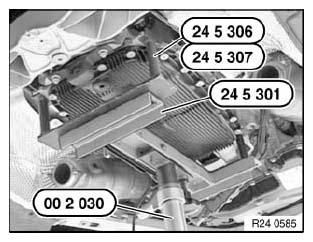

Support with special tools 24 5 306 , 24 5 301 and 00 2 030 .

Set up special tool 24 5 306:

All supports to "B".
Supports 3 and 4 are at rear of transmission.
Support lettering points forwards.

Fig 12: Identifying Special Tool (24 5 306) & (24 5 301)
Courtesy of BMW OF NORTH AMERICA, INC.

Securing torque converter against slipping out:

Install special tool 24 4 131 (basic unit) with corresponding blades in opening of transmission housing and clamp:

Blades for

M54, N62 24 4 132

Fig 13: Identifying Special Tool (24 4 131) & (24 4 132)
Courtesy of BMW OF NORTH AMERICA, INC.

Blades for

M67, M67TU 24 4 132 turned 180° screwed

Fig 14: Identifying Special Tool (24 4 135) & (24 4 131)
Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool 24 4 161 (1) with corresponding shaped sections:

Shaped section for

2 N73 24 4 162
3 M57TU, M57T2 24 4 163

Fig 15: Identifying Special Tool (24 4 161)
Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 24 4 160 into opening of transmission housing and clamp gently with screw (1). See 24 4 160 SUPPORT BRACKET

Twist in screw (2) and clamp down.

Then tighten down screw (1) briefly.

Fig 16: Identifying Special Tool (24 4 160)

Courtesy of BMW OF NORTH AMERICA, INC.

Further tasks:

Remove transmission cross-member . See 22 32 050 REPLACING CROSS-MEMBER FOR TRANSMISSION MOUNTING .

Tightening torque 24 71 1AZ/2AZ . See 24 71 TRANSMISSION MOUNTS

Fig 17: Identifying Transmission Cross-Member

Courtesy of BMW OF NORTH AMERICA, INC.

N73 only:

Release holder so that lines of power steering (1) do not collide with line from transmission oil cooler (2).

Fig 18: Releasing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove propeller shaft: See 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT

Remove propeller shaft from transmission.
Release center bearing.
Tie propeller shaft to one side.

If necessary, unlock or lock transmission lock . See 24 34 ... MANUALLY UNLOCKING TRANSMISSION LOCK

NOTE: Support front of engine on housing with an assembly aid (e.g. transmission lifter) when removing and installing transmission.

Do not lower transmission too far, and take car to avoid collisions, e.g.:

M57: screws for catalytic converter.

Fig 19: Identifying Transmission Support
Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Tightening torque, 24 00 1AZ . See 24 00 TRANSMISSION IN GENERAL

Fig 20: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check that dowel sleeves are correctly seated.

Replace damaged dowel sleeves.

Fig 21: Identifying Dowel Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bore (1) in driving disk must be accessible from opening on engine oil pan.

Fig 22: Identifying Bore In Driving Disk

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rotate torque converter until bore in torque converter is flush with bore in driving disk.

Flange automatic transmission to engine.
