52 13 385 Replacing Gas Cartridge (Pyroactivator) For Crash-Active Head Restraint On Front Seat

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt pretensioners.

Incorrect handling may result in triggering of the crash-active head restraint and thereby cause injury.

Switch off ignition!

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD
Remove crash-active head restraint. See NORMAL SEAT or COMFORT SEAT .

IMPORTANT:

The pyrotechnical device may be replaced up to 5 times.

Triggering frequency is denoted on the sticker on the head restraint carrier.

Stickers are available as spare parts.

Starting situation:

Head restraint is in the crash position after being triggered.

NOTE:

Pyroactivator can only be removed in the triggered state.

The complete crash-active head restraint must be replaced if the event of a head restraint fault signal and an untriggered pyroactivator.

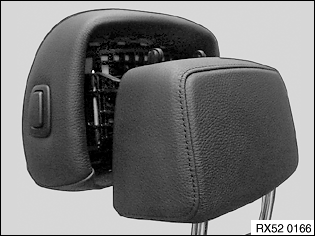

Fig 1: Identifying Head Restraint In Crash Position

Courtesy of BMW OF NORTH AMERICA, INC.

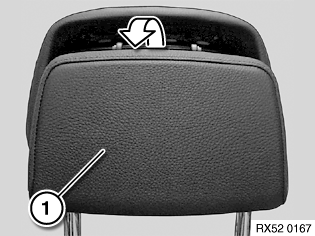

Removing cover:

Raise cover (1) and pull towards rear.

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Removing pyrotechnical device:

Press together retainer (1) for pyrotechnical device at lugs.

Feed out pyrotechnical device.

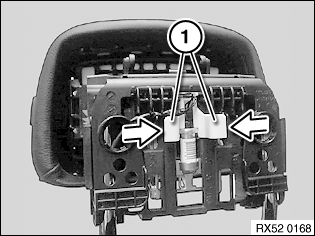

Fig 3: Identifying Retainer (1) For Pyrotechnical Device

Courtesy of BMW OF NORTH AMERICA, INC.

Removing pyroactivator:

Pull pyroactivator (2) out of mounting (1) for pyrotechnical device.

Unlock PLUG CONNECTION (3) and disconnect.

IMPORTANT:

Dispose of plastic element and pyroactivator.

Fig 4: Identifying Plug, Pyroactivator, And Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure for installing pyrotechnical device:

Bringing head restraint together - version without button (MFS):

Pull spring catches apart and push head restraint together.

Maintain position.

Fig 5: Identifying Head Restraint Without Button

Courtesy of BMW OF NORTH AMERICA, INC.

Bringing head restraint together - version with button (Basic):

Press button (1) and push head restraint together.

Maintain position.

Fig 6: Identifying Head Restraint With Button

Courtesy of BMW OF NORTH AMERICA, INC.

Locking release plate:

Hold pushed-together head restraint in position and push release plate (1) upwards up to stop.

Release plate (1) must audibly snap into place.

Fig 7: Locking Release Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Checking head restraint lock:

Check end position of release plate (1).

All four springs must be engaged (snapped into place).

Fig 8: Identifying Release Plate End Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing pyrotechnical device:

Connect plug (1) to new pyroactivator (2) and LOCK .

Clip pyroactivator (2) into new mounting (3).

Fig 9: Identifying Plug, Pyroactivator, And Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Installing pyrotechnical device:

Press together retainer for pyrotechnical device at lugs.

Insert retainer for pyrotechnical device into release plate and tilt in upward direction.

Retainer for pyrotechnical device must audibly snap into place.

NOTE:

Check seating of retaining lugs in retainer.

Fig 10: Installing Pyrotechnical Device

Courtesy of BMW OF NORTH AMERICA, INC.

Laying wiring harness:

Secure wiring harness in carrier section with strain relief.

Fig 11: Identifying Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Mounting cover:

Clip cover onto carrier section.

Cover must audibly snap into place.

Fig 12: Mounting Cover

Courtesy of BMW OF NORTH AMERICA, INC.
