52 17 393 Removing And Installing/Replacing Front Left Or Right Crash-Active Head Restraint

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt pretensioners.

Incorrect handling may result in triggering of the crash-active head restraint and thereby cause injury.

Switch off ignition!

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD
Remove REAR PANEL

Unfasten plug connection (1) and disconnect.

Feed out wiring harness from head restraint height adjustment and foam material.

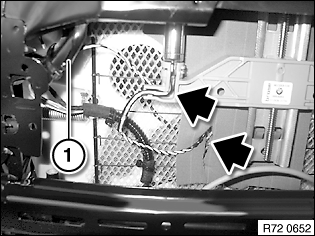

Fig 1: Identifying Plug Connection And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out head restraint.

Fig 2: Pulling Headrest

Courtesy of BMW OF NORTH AMERICA, INC.
