34 41 250 Removing And Installing/Replacing Expander Lock For Handbrake Shoes

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 1 030

Necessary preliminary tasks:

Remove handbrake shoes .

After completing work:

Adjust handbrake.

Lock adjuster unit (ASZE).

Using special tool 32 1 030, press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).

Fig 1: Adjusting Spring Back With Special Tool 32 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

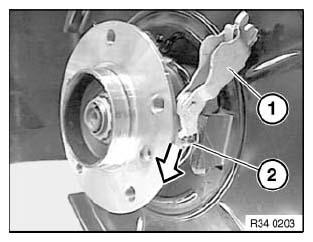

Pull expander lock (1) forwards, disconnect handbrake Bowden cable (2) and remove expander lock.

Fig 2: Disconnecting Handbrake Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
