34 41 220 Removing And Installing/Replacing All Handbrake Shoes

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 1 030
34 4 000

Necessary preliminary tasks:

Remove rear brake disk

After completing work:

Adjusting handbrake

Release handbrake lever.

Lock adjuster unit (ASZE).

Using special tool 32 1 030, press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).

Fig 1: Adjusting Spring Back With Special Tool 32 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect return spring (1) with brake spring pliers.

Installation:

Check and if necessary replace return spring (1).

Pay attention to installation position of adjustment screw (2).

Apply a thin coat of grease to bush and screw threads.

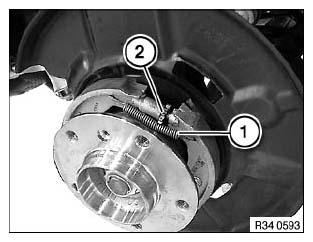

Fig 2: Identifying Brake Spring Pliers And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect return spring (1) with brake spring pliers.

Installation:

Check and if necessary replace return spring (1).

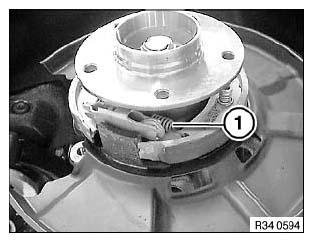

Fig 3: Identifying Brake Spring Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Turn clamping pins (1) with special tool 34 4 000 through 90° and disconnect.

Remove brake shoes (2).

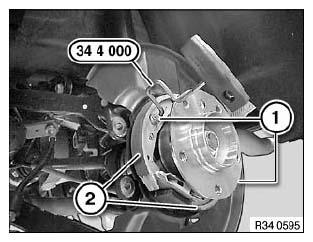

Fig 4: Turning Clamping Pins With Special Tool 34 4 000

Courtesy of BMW OF NORTH AMERICA, INC.
