23 42... Bleeding procedure after replacing electric motor (GS7S47BG SMG)

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This bleeding procedure is only to be carried out after the following tasks:

Electric motor of hydraulic pump

Necessary preliminary tasks:

Remove UNDERBODY PROTECTION

Undo screw plug (1) on underside of pump block a few thread turns. Do not release plug completely.

Tightening torque: 24 Nm

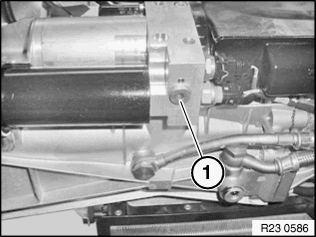

Fig 1: Locating Screw Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out bleeding of clutch slave cylinder by means of BMW diagnosis system ("Service functions").

If fluid emerges from the plug opening, screw in and tighten the plug.

If no fluid emerges, activate the bleeding procedure again until fluid emerges.

After completing work:

CHECK FLUID LEVEL in hydraulic system, topping up if necessary
Clear fault memory
