41 11 141 Replacing Cover For Left Or Right Frame Side Member (Partial Replacement Between A- And B- Pillars)

Read contents of, see BODY, GENERAL .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved, see SPOT-WELDING APPARATUS for repairs.

Following new body parts are required:

Fig 1: B-Pillar With Entrance

Courtesy of BMW OF NORTH AMERICA, INC.

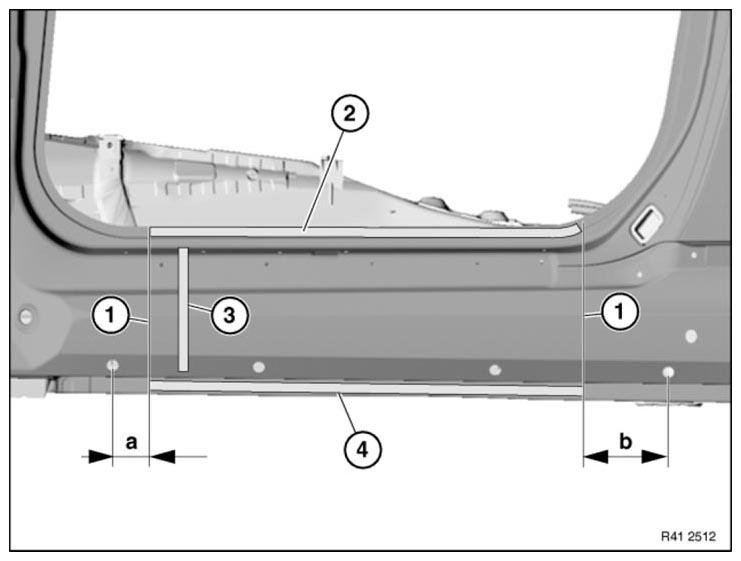

Fig 2: Severance Cuts Dimension And Weld Joint

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts (1) in accordance with specified measurements and cut.

Distance a = approx. 50 mm behind bore dia. 20 mm.

Distance b = approx. 150 mm before bore dia. 20 mm.

Open weld joints in areas (2) and (4).

Installation:

Weld, see REINFORCEMENT PLATES at all severance cuts (1).

see BOND and rivet new part in area (4).

Use Hemlock 813 blind rivet - Aluminum and steel/bonding and welding).

Double number of rivets with respect to welding spots in area (4).
