Preparation of new part

Mark severance cut (1) in accordance with vehicle and cut.

Adjust new part to fit with straightening attachment or universal mount.

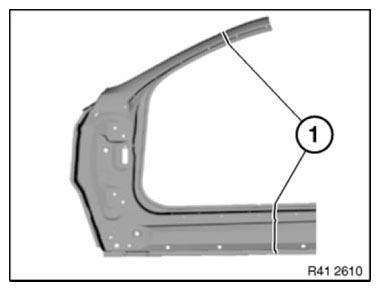

Fig 1: Severance Cut
G06897610Courtesy of BMW OF NORTH AMERICA, INC.
