41 62 000 Removing And Installing Rear Lid
Read contents of, see BODY, GENERAL .
Necessary preliminary tasks:
- Remove, see TRIM FOR REAR LID
- Disconnect all plug and socket cable connections on rear lid.

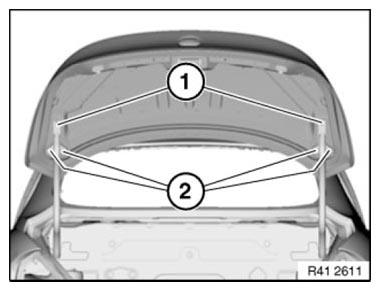

Slacken screws (1) on rear lid hinge to rear lid.
Release screws (2) on rear lid hinge to rear lid.
Remove trunk lid.
Installation:
see ADJUST REAR LID .
