41 33 040 Replacing Front Wall

Read contents of see BODY, GENERAL .

Following new body parts are required (refer to EPC):

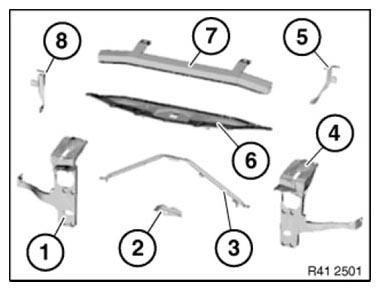

Fig 1: Front Wall Holder, Mounting And Front End Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Open screws in area (1).

Remove front end/side frame connection (2).

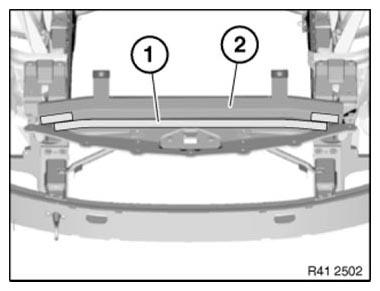

Fig 2: Front End/Side Frame Connection With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Open screws (1) and (2).

Remove front middle bumper mounting (3) and V-support (4).

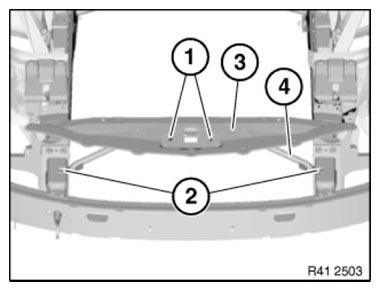

Fig 3: Front Middle Bumper Mounting And V-Support With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry over the work step shown symmetrically to the other side of the car

Drill out rivets (1).

Open screws (2).

Remove carrier for bumper trim with deformation element (3).

Open screws (4).

Remove front wall holder (5).

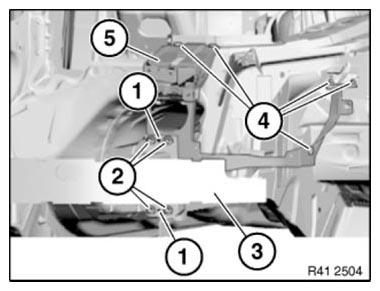

Fig 4: Carrier For Bumper Trim, Rivet And Front Wall Holder With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, use screws or locking pins (instead of rivets) to secure deformation element.
