63 10 004 Adjusting headlights
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Observe test preconditions for adjusting headlights. Refer to 63 10 ... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT .

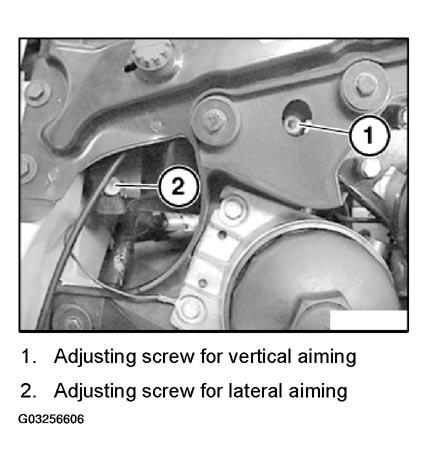

Adjust headlights at adjusting screws (1) and (2).
A definite allocation of adjusting screws is not possible.
- (1) Adjusting screw for vertical aiming.
- (2) Adjusting screw for lateral aiming.
