63 10 ... Test requirements for headlight vertical aim adjustment
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
- Car parked on level ground.
- Replace faulty glass and mirrors and blackened light bulbs.
- Check tire pressure and correct if necessary.
- Apply load equivalent to one person on driver's seat (approx. 75 kg).
- Vehicle with full fuel tank or appropriate additional weight in luggage compartment.
- Correct adjustment of headlights in relation to engine hood (gap dimensions).
- Manual headlight vertical aim control: Turn handwheel to 0 position.
- Automatic headlight vertical aim control: Wait approx. 30 seconds after switching on lights.
- Version with xenon headlights: Wait 80 seconds after switching on lights. During this time, do not move the vehicle and avoid vibrations.
- Align headlight aimer with vehicle longitudinal axis and parallel to parking surface. Set marking line (M) on aimer to distance (e). Scale graduations on aimer are equal to a gradient in cm at a distance of 10 meters.

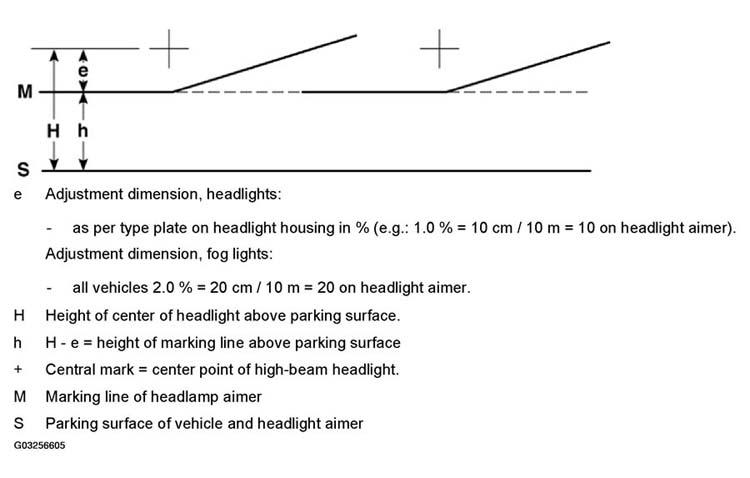

Light/Dark Limit Of Headlights In Headlight Aimer:
(e) Adjustment dimension, headlights:
- As per type plate on headlight housing in % (e.g.: 1.0 % = 10 cm /10 m = 10 on headlight aimer).
Adjustment dimension, fog lights:
- All vehicles 2.0 % = 20 cm/10 m = 20 on headlight aimer.
(H) Height of center of headlight above parking surface.
(h) H - e = height of marking line above parking surface.
(+) Central mark = center point of high-beam headlight.
(M) Marking line of headlamp aimer.
(S) Parking surface of vehicle and headlight aimer.
Adjustment dimension (e) is only valid for EUR. Observe differing national regulations.
