54 12 117 Replacing Seal For Glass Slide/Tilt Sunroof Lid

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

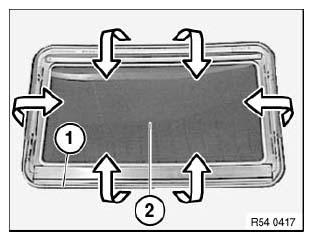

Detach seal (1) from glass slide/tilt sunroof lid (2).

Fig 1: Detaching Seal Of Tilt Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

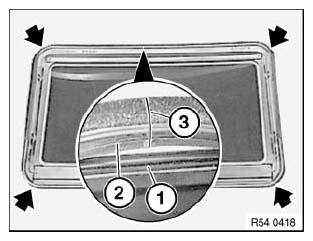

Coat guide channel (1) and seal (2) with soapy water.

Begin installation at rear middle, with sealing joint (3).

Do not pull seal too tightly in radii (leakage).

Fig 2: Locating Guide Channel & Seal

Courtesy of BMW OF NORTH AMERICA, INC.
