33 32 180 Removing and installing/replacing left or right toe arm
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the toe arm is detached from the rear axle carrier/wheel carrier, it is necessary after reinstallation to carry out a wheel/chassis alignment check.
Necessary preliminary tasks:
- Remove rear wheel
If necessary, open cover (1) on stoneguard (2).
Mark position of eccentric screw to rear axle carrier.
Release screw.
Installation:
If necessary, turn toe arm by hand.
See Tightening torque 33 32 8AZ in 33 32 CONTROL ARMS AND STRUTS .

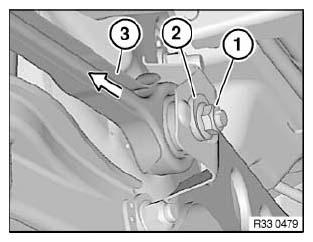

Release nut (1) and remove eccentric washer (2).
Unscrew eccentric bolt towards front and remove toe arm (3).
Installation:
Bolt head points in direction of travel.
Reinstall eccentric washer.
Replace self-locking nut.
Align eccentric screw by means of marking to rear axle carrier.
See Tightening torque 33 32 7AZ in 33 32 CONTROL ARMS AND STRUTS .
After installation:
- Perform CHASSIS ALIGNMENT CHECK
