16 11 060 Removing and installing or replacing fuel filler pipe

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Recycling

Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.

Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

IMPORTANT: Ensure adequate ventilation in the place of work!
Avoid skin contact (wear gloves)!
After installation of fuel tank/prior to first engine start-up:

Fill fuel tank with at least 5 liters of fuel.
Check ground connection at fuel filler neck to body for continuity. If necessary, clean contact surface between body and fuel filler pipe screw connection.

Necessary preliminary tasks:

Draw off fuel from fuel tank
Remove rear right wheel arch trim . See 51 71 041 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT WHEEL ARCH COVER (CONVERTIBLE) or 51 71 041 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT WHEEL ARCH COVER (COUPE) .
Lower rear axle . See 33 31 503 LOWERING/RAISING REAR AXLE CARRIER (SPECIAL TOOL SWZ00-2040) .

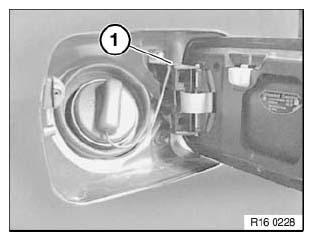

Unhook retaining strap (1) from tank flap.

Open cap and set to one side.

Fig 1: Identifying Retaining Strap

G04725781

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: There may still be residual amounts of fuel in the tank.
Catch and dispose of escaping fuel.

Unfasten hose clip (1).

Detach fuel filler hose from fuel filler pipe.

Installation:

Replace hose clip.

Tightening torque 16 12 1AZ, see 16 12 FUEL DELIVERY

Fig 2: Identifying Hose Clip

G05758858

Courtesy of BMW OF NORTH AMERICA, INC.

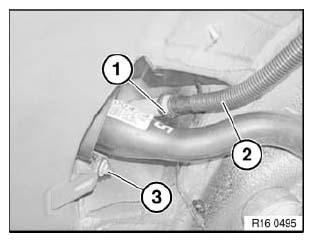

Unlock quick-release fastener (1) and detach vent hose (2).

Unscrew nut (3).

Fig 3: Identifying Quick-Release Fastener, Vent Hose And Nut

G04725783

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Installation:

Tightening torque 16 12 2AZ, see 16 12 FUEL DELIVERY

Withdraw fuel filler pipe (2) completely out of rubber gaiter at wheel arch and feed out.

Installation:

Make sure rubber gaiter is correctly seated.

Fig 4: Identifying Fuel Filler Pipe And Nuts

G04725784

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean contact surface on body and grounding lead on fuel filler pipe.

Ground connection must be guaranteed.
