11 14 010 Replacing Sealing Cover For Vacuum Pump (N52K)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

For the following special tools, refer to ENGINE- SPECIAL TOOLS (N52K) .

11 4 361
11 4 362
11 4 363
11 4 364
11 9 200

Necessary preliminary tasks:

Remove fan cowl with electric fan. See 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (N52/ N52K/ N53) .
Remove alternator drive belt . See 11 28 010 REPLACING ALTERNATOR DRIVE BELT (N52K) .
Remove drive belt tensioner . See 11 28 020 REPLACING TENSIONING DEVICE FOR ALTERNATOR DRIVE BELT (N52) .

NOTE: For purposes of clarity, graphics show alternator and power steering pump removed.

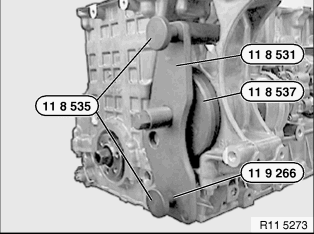

Fig 1: Secure special tools 11 8 535, 11 8 531, 11 8 537 and special tool 11 9 266

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tools 11 8 535, 11 8 531, 11 8 537 and special tool 11 9 266.

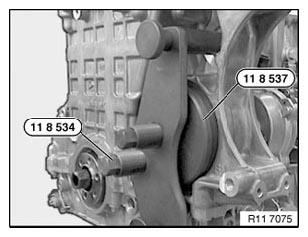

Fig 2: Identifying Special Tools (11 8 537, 11 8 534)

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 8 537 by hand on sealing cap. Screw in special tool 11 8 534.

NOTE: The sealing cap is pressed out diagonally during this work step.

Fig 3: Identifying Special Tool (11 8 533) And (11 8 532)

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in new sealing cap (1) with special tools 11 8 532 and 11 8 533 until flush with crankcase upper part.

Assemble engine.
