13 74 001 Removing and installing/replacing sound generator (N54)

Necessary preliminary tasks:

Remove intake filter housing

Remove recirculated air hoses.

Unfasten hose clip (1).

Release sound generator from bracket (2) and remove.

Add final details to vehicle.

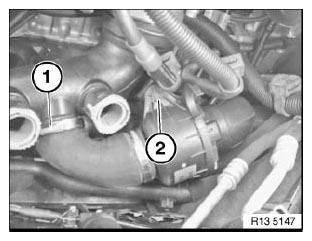

Fig 1: Identifying Hose Clip And Bracket
G06175155Courtesy of BMW OF NORTH AMERICA, INC.
