31 10 010 Removing and Installing/Replacing Reinforcement Plate
IMPORTANT:
Observe safety instructions for raising the vehicle. See 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .
Driving without reinforcement plate is not permitted!
Necessary preliminary tasks:
- Remove underbody protective plate . See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION and 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .

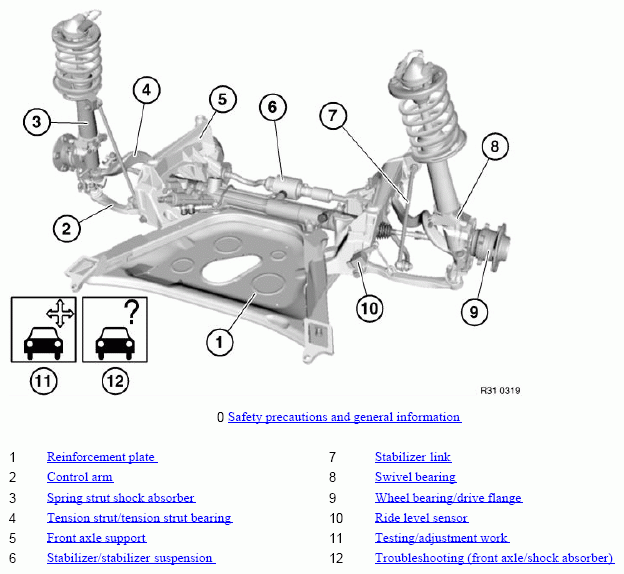

Release screws (1) and remove reinforcement plate. SeeFigure
Installation:
Replace screws and insertion nuts.
Tightening torque 31 10 9AZ. See 31 10 FRONT AXLE SUSPENSION .
Replacement:
If applicable, remove heat shield. See REMOVAL & INSTALLATION
