51 47 490 Removing And Installing/Replacing Front Underbody Protection

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

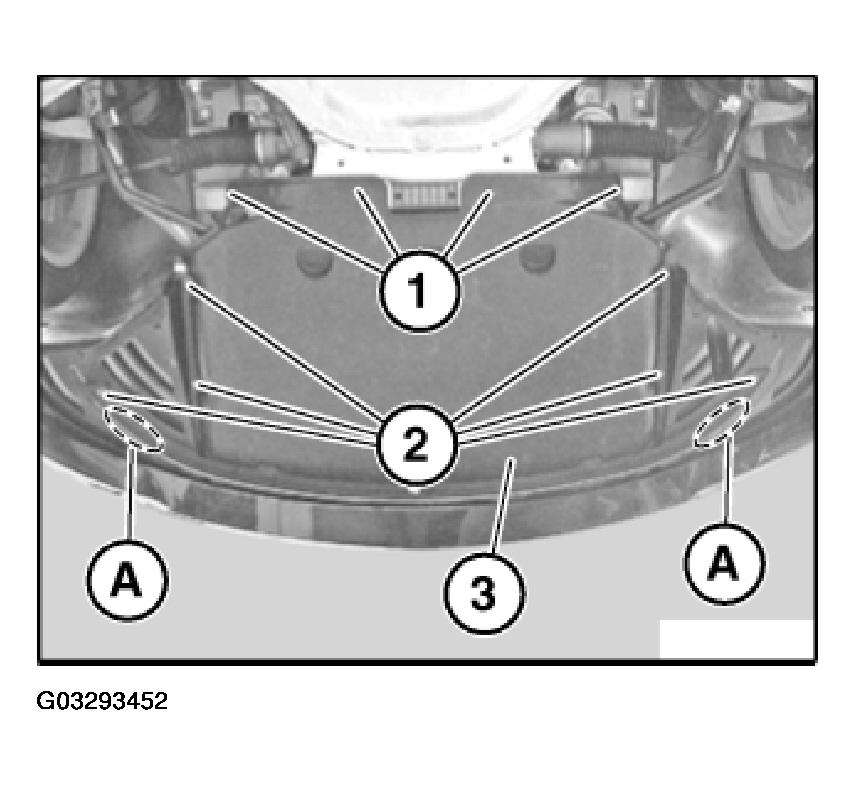

Release expansion rivet (1).

Release screws (2) and then catches in area (A).

Remove underbody protection (3) towards rear.

Installation:

Ensure correct seating.

Center underbody protection (3) and secure.

Fig 1: Identifying Expansion Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

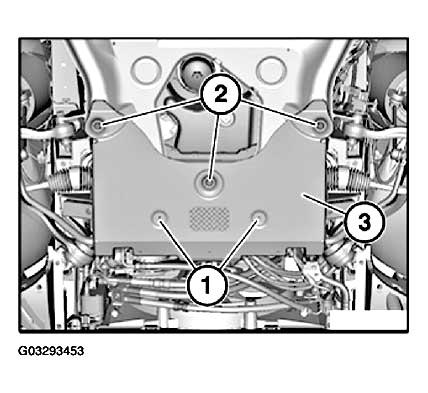

Version With Bad Weather Package:

Release screws (1).

Release screws (2) and remove underbody protection (3) downwards

Installation:

Replace screws (2).

Tightening torque, refer to 31 10 9AZ in TORQUE SPECIFICATIONS .

Fig 2: Locating Underbody Protection Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

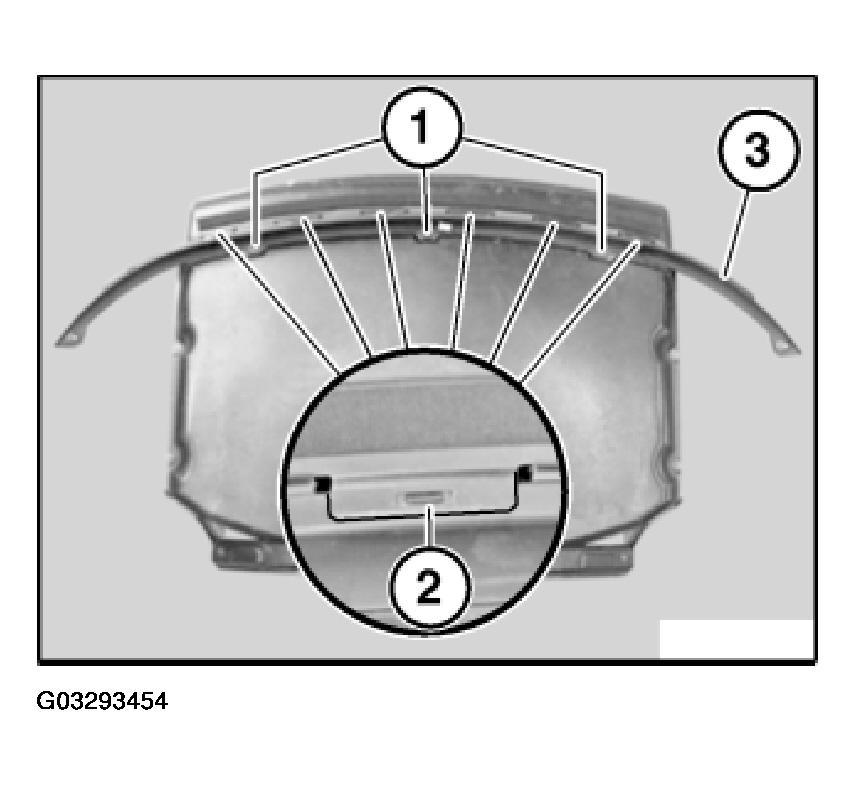

Replacement:

Release screws (1).

Release catches (2) and remove lip (3).

Fig 3: Removing Lip Of Underbody Protection
