51 71... Removing and installing front underride protection

WARNING: This page is about a different car, the 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

NOTE: Pictures created using the X6 3.0 i US as an example. There may be differences in detail in the case of other models.

Release screws (1).

Unclip catches (2) with special tool 00 9 317 and remove underride protection (3).

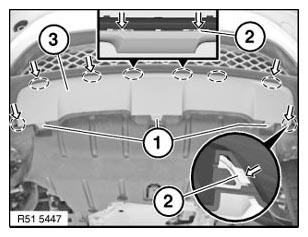

Fig 1: Removing Underride Protection And Catches Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on underride protection (2) must not be damaged.

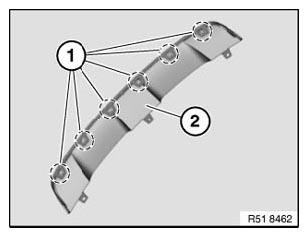

Fig 2: Identifying Underride Protection And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
