9317 Wedge

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

0490534 009317 Wedge MW

Replaced by: 0496569

NOTE: (Trim wedge) From 11/2008, special tool is replaced by 00 9 325 (quality improvement due to new material) Replaced by 00 9 325 (0 496 569) [Replaced]

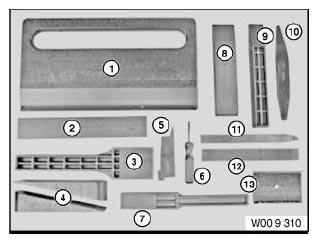

Fig 1: Identifying Wedge (0490534)
G04739103Courtesy of BMW OF NORTH AMERICA, INC.
