66 53 030 Removing and installing/replacing side view camera on left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release screws (1). Remove the side-view camera.

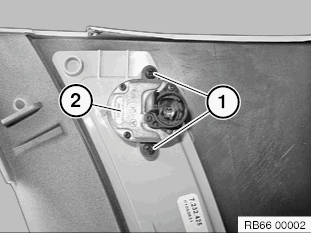

Fig 1: Removing Side View Camera
G00530389Courtesy of BMW OF NORTH AMERICA, INC.
