51 11 156 Removing and installing front bumper trim

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Pictures created using the X6 3.0 i as an example. There may be differences in detail in the case of other models.

Necessary preliminary tasks:

Remove front reflector, see 63 14 080 REMOVING AND INSTALLING/REPLACING FRONT REFLECTOR .
Release trim on front wheel arch, see 51 71 470 Removing and installing/replacing trim on front left or right wheel arch .

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Release screws (1).

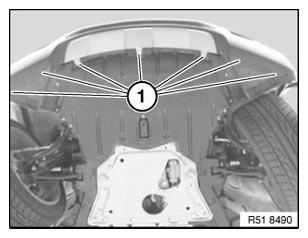

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Release screws (1) on wheel arch trim (2).

Installation:

Make sure wheel arch trim (2) is in correct position.

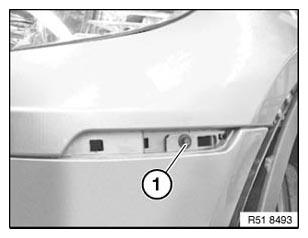

Fig 2: Identifying Screws And Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Fig 3: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

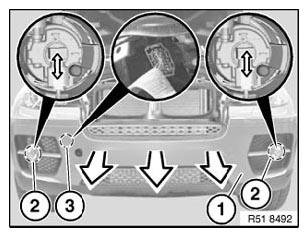

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip bumper trim (1) with a 2nd person helping towards front from catch (2).

IMPORTANT: Do not damage bumper trim when pulling off.

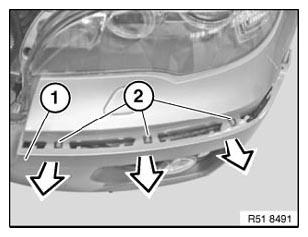

Fig 5: Identifying Bumper Trim And Catch

Courtesy of BMW OF NORTH AMERICA, INC.

The 2nd person holds the bumper trim (1) while the plug connections for the fog lamps in area (2) and for Park Distance Control (PDC) in area (3) are disconnected.

Remove bumper trim (1) towards front with aid of a 2nd person.

Installation:

Height adjustment, refer to 41 00... BODY GAP DIMENSIONS .
