63 14 080 Removing and installing/replacing front reflector

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322 , see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS -- X6 .

Lever front reflector (1) with special tool 00 9 322 in direction of arrow (A) out of front side panel (2) and remove in direction of arrow (B).

Installation:

Locking spring (3) must not be damaged or missing.

Fig 1: Identifying Spring And Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed front reflector (1) first in front area into front side panel and then press down in rear area.

Make sure front reflector (1) is correctly engaged on front side panel.

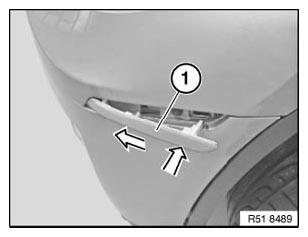

Fig 2: Identifying Front Reflector On Front Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.
