51 16 342 Removing and installing/replacing lock cylinder for passenger airbag deactivation

Individual parts, switch for passenger airbag deactivation

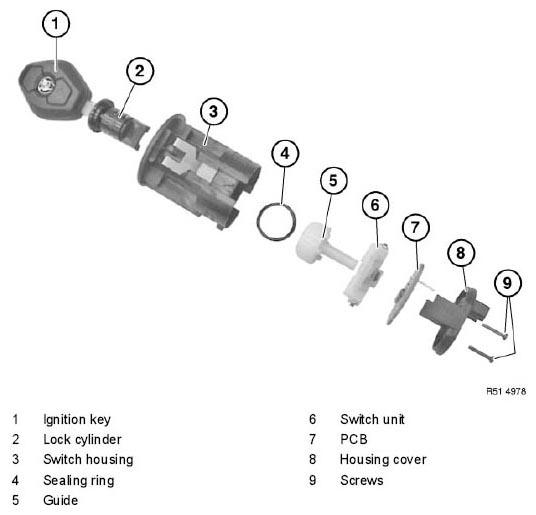

Fig 1: Exploded View Of Switch For Passenger Airbag Deactivation

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Release screws (1).

Remove housing cover (2) and PCB (3) underneath.

Fig 2: Removing Housing Cover & PCB Underneath

Courtesy of BMW OF NORTH AMERICA, INC.

Remove switch unit (1) in upward direction.

Installation:

Switch unit (1) can only be installed in one position.

PCB (4) can be inserted turned through 180°.

Position of magnet sensor (3) of PCB (4) must match up with permanent magnet (2) of switch unit (1).

Remove guide (1) in upward direction.

Fig 3: Identifying Switch Unit & PCB

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (1) can only be installed in one position.

Fit seal (2) on guide (1) and insert in switch housing.

Fig 4: Identifying Seal On Guide

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Ignition key must be inserted in lock cylinder, otherwise this will be destroyed when removed.

Insert ignition key in lock cylinder (2).

Carefully release catches (1) in outward direction and press out lock cylinder (2) with ignition key.

Installation:

Lock cylinder (2) can only be inserted in "ON" or "OFF" switch position.

Lock cylinder

Fig 5: Identifying Catches & Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
