72 11 041 Removing and installing/replacing front left or right lower belt fitting (seat belt tensioner)
Necessary preliminary tasks:
- Remove inner cover on front seat
WARNING:
Read and comply with safety regulations
for handling airbag modules and pyrotechnical belt tensioners.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.
Switch off ignition!

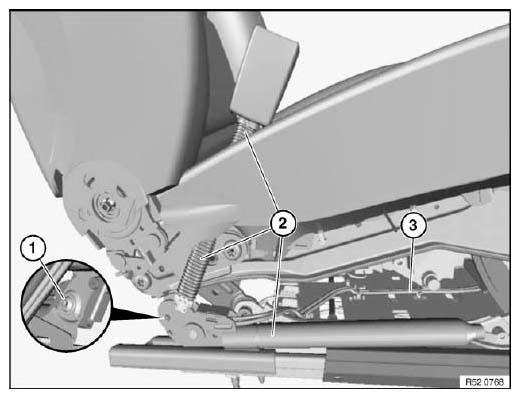

Release screw (1).
Disconnect plug connection (3).
Remove lower strap (belt tensioner) (2).
Installation:
For tightening torque refer to 72 11 05AZ in 72 11 SEAT BELTS .
