52 14 041 Removing And Installing Inner Cover On Left Or Right Front Seat (Normal/Electric)

Necessary Preliminary Tasks:

• Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .

Unscrew bolt (1).

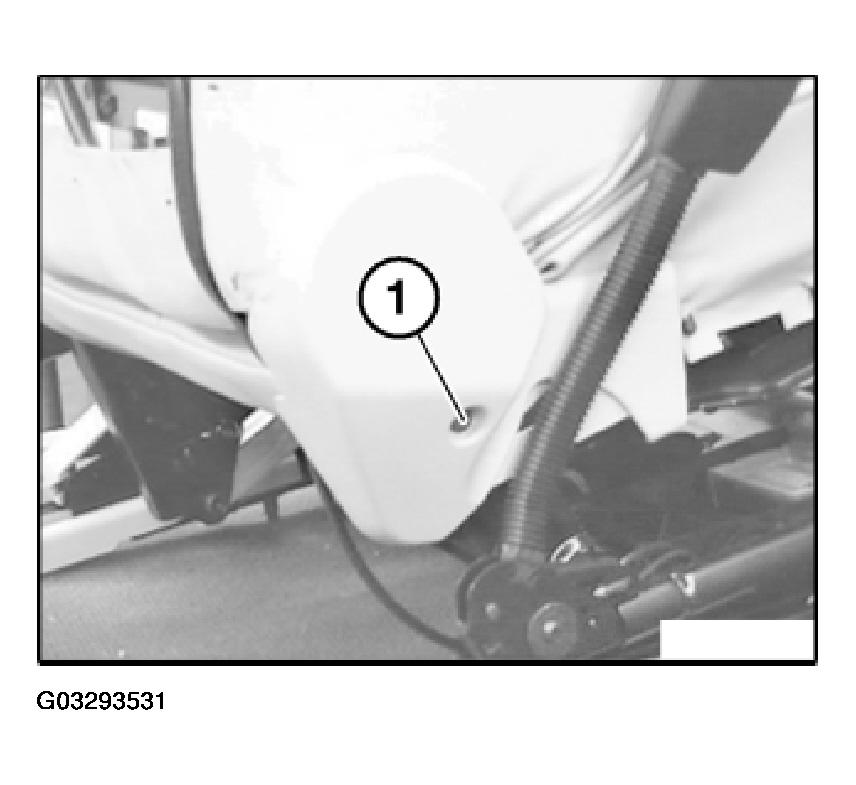

Fig 1: Front Seat Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Cover is secured by guide (2) in hole (1).

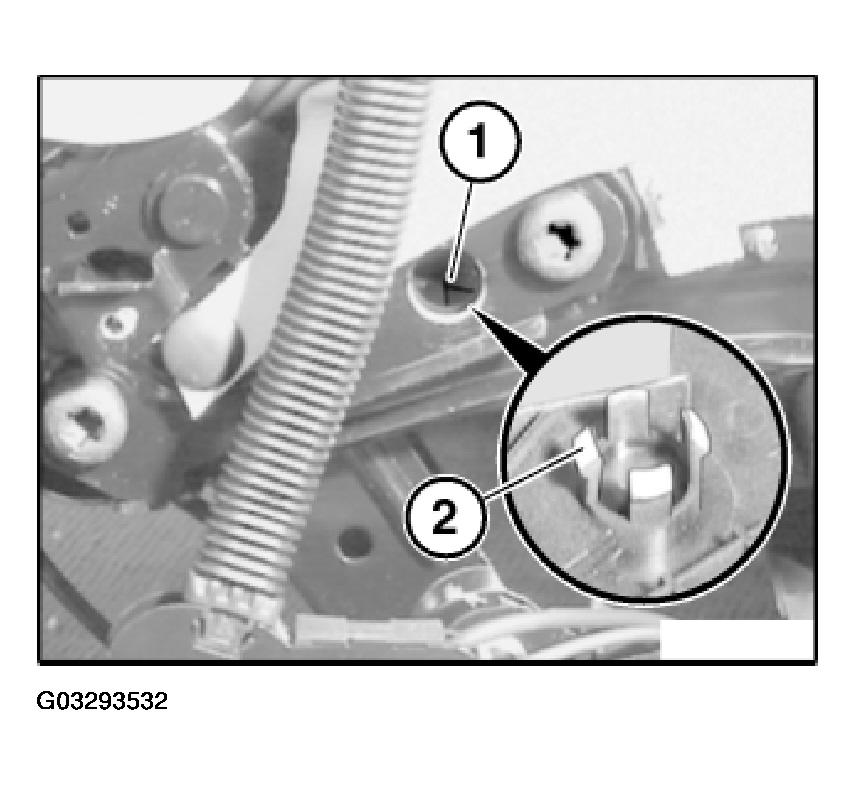

Fig 2: Guide And Hole

Courtesy of BMW OF NORTH AMERICA, INC.
