65 50 011 Removing and installing (replacing) video module for on-board monitor

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: Follow instructions for Handling Optical Fibres .

Unfasten screws (2) and nuts (3).

Pull back video module for on-board monitor (1) and disconnect plug connections.

Remove video module for on-board monitor (1) complete with holder.

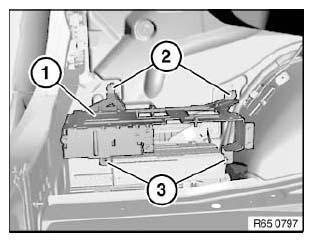

Fig 1: Identifying Video On-Board Monitor Module, Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (3) and remove holder (2) from video module for on-board monitor (1).

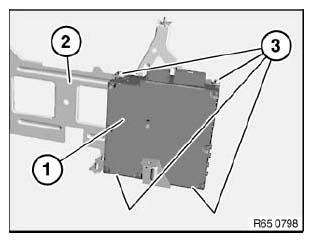

Fig 2: Identifying Video On-Board Monitor Module, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding.
