51 47 151 Removing and installing / replacing left luggage compartment wheel arch trim

Necessary preliminary tasks:

• Remove Trim On Rear Apron
• If necessary, remove Storage Tray  in luggage compartment on left

Version with through-loading system:

• Fold down backrest for left rear seat

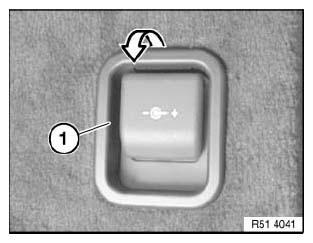

Lever out socket (1) in direction of arrow and disconnect plug connection.

Installation:

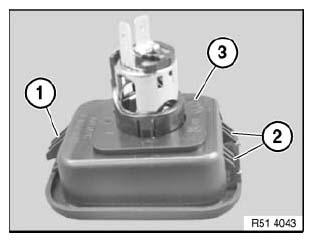

Guide (1) and catches (2) must not be damaged.

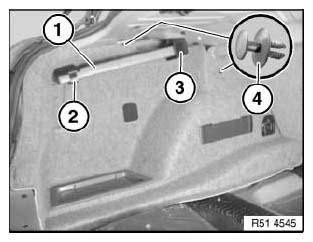

Remove warning triangle (1).

Turn bracket (2) approx. 90° in counterclockwise direction and remove.

Turn bracket (3) approx. 90° in clockwise direction and remove.

Release expansion rivets (4).

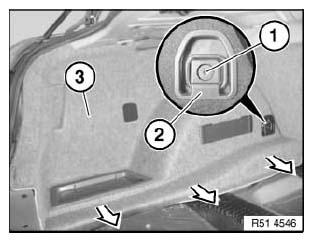

Release screw (1) and remove trim (2).

Pull out luggage compartment wheel arch trim (3) in inwards direction.

Installation in version without through-loading system only:

Installation:

To install luggage compartment wheel arch trim, proceed as follows:

• Remove Rear Seat
• Unscrew screws (1).

  For tightening torque refer to 52 24 01AZ in 51 24 REAR LID LOCKS .

• Press backrest from luggage compartment in direction of vehicle interior and feed luggage compartment wheel arch trim between wheel arch and backrest
  Fig 5: Identifying Screws

  Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

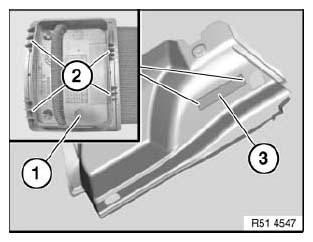

If necessary, release trim (1) at catches (2) from interior and remove rubber pull (3).
