65 13 090 Removing and installing/replacing speaker (mid-range speaker, door at rear)

Necessary preliminary tasks:

• Remove Rear Door Trim Panel .

Unscrew nuts (1).

Remove speaker (2) upwards out of rear door trim panel (3).

For tightening torque refer to 65 13 1AZ in 65 13 SPEAKERS .

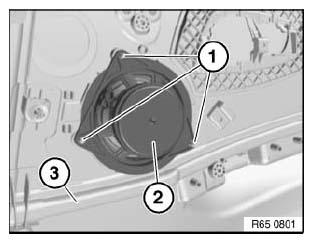

Fig 1: Identifying Speaker, Nuts And Rear Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
